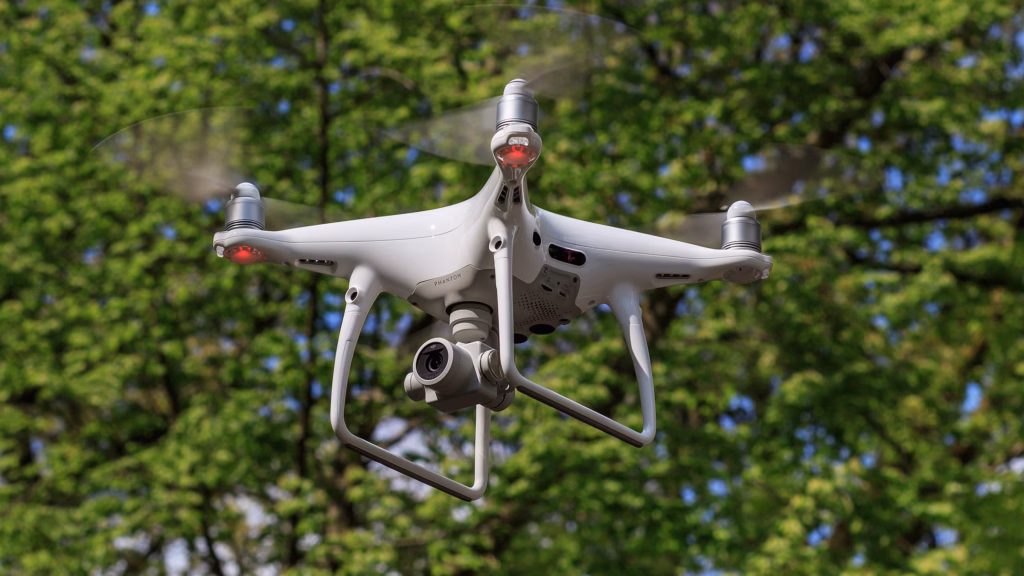

Have you ever looked up and seen a drone hum quietly overhead, maybe camera attached, motion smooth and precise, and wondered what magic lies inside? Drones feel a bit like flying robots—gracefully airborne, capturing stunning images or performing complex moves—but the real wonder is all the engineering inside. In this article I’ll take you on a journey inside a modern drone, peeling back the shell to meet the parts that make it fly, sense, record, and navigate.
The Airframe: The Skeleton and Skin
If you take a drone and remove all the electronics and motors, you’re left with the airframe. The airframe is the skeleton and skin: it supports the parts, resists wind and vibration, keeps weight low and strength high.
Here’s what makes the airframe important:
Materials & structure
A drone’s airframe is often made of lightweight yet strong materials—carbon fiber, aluminum, reinforced plastic composites. Designers choose materials that give strength (to survive landings, turbulence) while keeping weight down (because every extra gram eats battery life). Research shows engineers optimizing composite structures for drone frames to improve strength to weight ratio.
Arms, body and mounting points
The shape matters. A quadcopter, for instance, has four arms radiating from a central hub. Those arms hold motors and propellers. The central hub houses the electronics, battery, sensors. The mounting of each component matters: vibrations from motors, wind loads, landing shock. If the arms are too flexible you’ll get wobble or vibration in the camera or sensors.
Landing gear & physical protection
Though less glamorous, the landing gear protects the important parts (camera, sensors) when the drone touches down. It also ensures clearance for propellers and keeps dirt, grass, or obstacles from damaging key components. Some drones add foldable landing gear to reduce size when stored.
Vibration and balance
When you fly, the motors spin fast; propellers cause vibrations. If the frame doesn’t damp these or isolate the sensitive parts (camera/IMU/sensors), you’ll lose image quality or stability. So the airframe often includes rubber mounts, dampers, isolation for key electronics.
In short, the airframe is the physical base on which everything else depends. A poor airframe choice can undermine even the most advanced electronics.
Propulsion System: Motors, Propellers, and Speed Controllers
Once you’ve got a stable frame, the next major system is getting the drone into the air. That comes down to the propulsion system: motors, propellers, and the controllers that drive them.
Here’s how these pieces work together:
Motors
Modern drones use brushless DC motors almost exclusively (in hobby and commercial types) because they offer higher efficiency, longer life, less maintenance compared to brushed motors. Each motor is matched to the frame size and propeller size—the bigger the drone, the bigger the motors and props needed to lift the weight.
Propellers
The propeller (or rotor) is what generates thrust: spin the motor, the propeller pushes air downward, the drone goes up. The size, pitch, number of blades and material all affect performance. For example a larger diameter prop moves more air at lower RPM (good for efficiency). The pitch (angle) affects how aggressively it “bites” the air for speed/acceleration.
Electronic Speed Controllers (ESCs)
The ESC is the translator between the flight controller (more on that later) and the motors. It takes signals (instructions) about how fast each motor should spin and translates battery power to the motor in the correct way—managing speed, direction (if reversible) and braking.
Power distribution & wiring
Behind the scenes the battery supplies a lot of current. There is a power distribution board or harness that routes battery current to ESCs, motors, and other electronics. Ensuring low loss power wiring, correct gauge wiring, and protection (fuses, connectors) is essential especially in larger drones.
Balance & redundancy
In higher-end drones you might find dual motors for redundancy (if one fails the drone can still fly), or redundant ESCs. For serious applications (surveying, industrial) the propulsion system may be over-engineered so that a failure won’t kill the mission. Sensors and software also monitor motor health.
So propulsion is the brute force of flight. Without it you can’t get airborne. But it also affects efficiency, stability, and how the drone responds to your inputs.
Battery & Power System
Flight time is one of the biggest constraints in drones. Everything else is important, but if you run out of battery in mid-mission, your drone comes down. So the battery and power system are critical pieces.
Here’s how to think about it:
Battery type
Most consumer and many commercial drones use Lithium‐Polymer (LiPo) batteries because they offer high energy density (lots of energy for weight) and can deliver high currents needed for motors. The pack will have a voltage rating (for example 4S, 6S, meaning 4 or 6 cells in series), a capacity (Mah or Ah), and a discharge rating (“C” rating) which tells you how much current it can safely deliver.
Power architecture
You’ll also have a power distribution board (PDB) or power harness routing the raw battery power to the ESCs, flight controller, sensors, maybe a gimbal or camera. Some drones integrate this into the main board. The architecture also includes safety features: over-current protection, voltage monitoring, connectors, sometimes smart battery packs that provide data to the controller about remaining charge.
Battery management & monitoring
Modern drones often have battery management systems (BMS) or smart cells that monitor temperature, voltage, current, and report back. The flight controller can warn you if battery is low, or if a cell is over-stressed. Thermal protection is important because in hot conditions LiPo performance drops. In cold conditions battery performance also suffers.
Efficiency & flight time
Many design decisions focus on maximizing flight time: selecting lighter frames, efficient motors and props, optimizing aerodynamics, limiting extra payload weight. Every gram and watt matters. When you add a heavy camera or extra sensors, the battery has to work harder.
In short the power system is like the fuel system in a car. Without reliable, efficient, safe power you won’t fly far or long—and you risk damage.
The Brain of the Drone
If motors are the muscles and battery the fuel tank, then the flight controller and avionics are the brain and nervous system. They take in information from sensors, pilot commands, autopilot routines, and then instruct the motors and actuators what to do.
Here’s how this system works:
Flight controller
This is the main printed circuit board (PCB) inside the drone. It includes processors, memory, I/O ports, and runs firmware (software) that interprets sensor data and pilot input. It sends signals to the ESCs and manages stability, autopilot, waypoint navigation, return-to-home, follow-me modes, etc.
Inertial Measurement Unit (IMU)
Onboard the flight controller or as a separate module you have an IMU comprising gyroscopes (which detect rotational movement) and accelerometers (which detect linear acceleration). Some systems also include a barometer (measuring air pressure for altitude) and magnetometer (compass). All of this data is fused to figure out the drone’s attitude (pitch, roll, yaw) and velocity.
Navigation & positioning
Drones rely heavily on satellite navigation (GPS, GLONASS, Galileo, BeiDou). Modern drones often support multiple constellations for better accuracy and reliability. With navigation data the drone can perform autonomous flight modes: return to launch, follow a path, orbit a point, etc.
Sensor fusion & obstacle avoidance
Beyond basic navigation, many modern drones include additional sensors: downward vision sensors or ultrasonic sensors (for indoor hover), stereo-cameras or LiDAR for obstacle detection and avoidance, upward sensors, sideways sensors. These feed into the flight controller and enable the drone to sense its environment, hover precisely even without GPS, avoid obstacles mid-flight.
Firmware & updates
Firmware inside the flight controller constantly evolves. Manufacturers push updates to improve stability, add new flight modes, enhance safety features, fix bugs. For serious drone operations the firmware may also include mission-planning tools and SDKs for customization.
Redundancy & safety
On advanced drones you’ll find redundant sensors, dual IMUs, dual compasses, backup batteries, even autopilot fallback systems so if one subsystem fails the drone can still land safely. These features matter most in professional surveying, mapping, inspection drones.
In short the flight controller and avionics are where the complexity lives. A well designed avionics stack can turn a simple flying machine into a smart, autonomous aerial robot.
Sensors & Payloads: The Drone’s Eyes and Ears
How does a drone “see” and “sense” the world? That’s the job of sensors and payloads. These components enable photography, video capture, mapping, inspection, and autonomous behaviour.
Here’s how to break it down:
Camera and gimbal
For consumer and prosumer drones the camera is one of the big selling points. Many drones have a stabilized gimbal mount that keeps the camera steady even when the drone tilts or moves. That way you get smooth video rather than shaky footage. The gimbal effectively isolates the camera from vibrations and controls its orientation.
Imaging sensors
Some drones go beyond a single camera: you may find multispectral sensors (for agriculture, surveying), thermal cameras (for inspection, search and rescue), light detection and ranging (LiDAR) sensors, and more. These payloads extend the drone’s function far beyond photography.
Navigation and obstacle sensors
We mentioned earlier downward vision sensors, ultrasonic sensors, stereo-cameras, infrared sensors, LiDAR. On drones that fly indoors or in complex environments, these sensors allow the drone to detect surfaces, proximity to obstacles, hover without GPS, avoid collisions.
Telemetry, communications and remote control link
Drones carry radio receivers (and sometimes transmitters) so the remote pilot can control them. They also transmit telemetry (battery status, altitude, speed, GPS coordinates) back to the controller or ground station. Some carry first-person view (FPV) systems so the pilot sees the drone’s main camera feed live. Electronics For You
Payload integration & mount
In professional drones you’ll often find mounting options (hardpoints) for different payloads: cameras, sensors, thermal imagers, drop cargos, even sprayers for agriculture. The integration requires wiring, power, data link, mechanical mount, and often balancing weight.
Sensors and payloads are what make the drone useful—they give it “brain inputs” and “mission outputs.” The better and more purpose-built they are, the more specialized the drone.
Navigation & Communications: Staying Connected in the Air
Flying a drone isn’t just about motors and props—navigation and communication systems ensure the drone knows where it is, and you know what it’s doing. Reliable links and accurate positioning matter a lot.
Here are the key parts and functions:
GPS/Global Navigation Satellite Systems (GNSS)
Modern drones often support multiple satellite systems (GPS from the USA, GLONASS from Russia, Galileo from Europe, BeiDou from China). Using multiple systems gives faster lock, better accuracy, and more reliability in challenging environments (near tall buildings, under trees).
Compass, magnetometer
To know heading (which way the drone is facing) you need a magnetometer. This helps the drone align itself with cardinal directions, crucial when navigating or returning home.
Radio link and telemetry
Between pilot and drone there is a radio link (for control commands). There is also telemetry channel(s) which send back data like battery voltage, GPS position, altitude, speed, signal quality, etc. Some drones support long-range radio or cellular links for extended missions.
Data link for payloads
If the drone is streaming live video (FPV) or sending sensor data (thermal images, LiDAR scans) it needs high-bandwidth data links. This might be WiFi, proprietary digital video links, or even cellular/5G in advanced systems.
Return-to-home and safety features
With GPS and sensors the drone can sense its origin point and safely return if the pilot triggers it or if the signal is lost or battery low. Some drones also sense obstacles and plan safe return paths.
Ground station systems
In professional use there may be a separate ground station that monitors multiple drones, mission planning software, maps terrain and flight paths, logs data, and supports autonomous operations.
Navigation and communication tie everything together. Without them you’d be stuck manually flying blind or unable to know where you are or where you’ve been.
Software & Autonomy: The Invisible Code That Makes Everything Work
You might not “see” software inside a drone, but it is the magic glue that holds all the hardware together and gives the drone smart behaviours.
Here’s an overview:
Firmware on the flight controller
This low-level software reads sensors, executes control loops (stabilisation), handles mode switching (hover, follow, waypoints), communicates with ESCs and sensors. It’s optimized for real-time performance, reliability and safety.
Mission planning & autonomous flight
On more advanced drones you’ll find software on the ground station or mobile device where you can plan waypoints, set flight boundaries, schedule flights, define “follow” targets, or “orbit” actions. The drone then executes with minimal pilot input.
Sensor fusion and data processing
Software takes data from IMU, GPS, vision sensors, LiDAR, and fuses it to create a coherent understanding of the drone’s state and environment. It manages obstacle avoidance, precise hovering, terrain following, and landing.
Calibration, updates, tuning
Calibration of sensors (compass, GPS) and tuning of flight parameters (PID loops) matter. Firmware updates bring new features and bug fixes. Some drones allow the user to tune settings; others do it behind the scenes for simplicity.
Safety software and fail-safes
When things go wrong (low battery, signal loss, sensor failure) software takes over to land safely, hover, or return home. Industry-grade drones may have redundant systems with automatic switch-over.
Payload and data handling
The software in the drone handles cameras, captures images/videos, streams to ground, logs data. For mapping or survey missions the software often automates image capture, geotagging, and upload for processing.
In other words, the software is the conductor of the orchestra. All the hardware is inert without clever code orchestrating the flight, sensing and data routines.
Cooling, Heat Management & Other Supporting Systems
You might not think about cooling when you think of a drone, but as drones get powerful (larger motors, high current batteries, lots of sensors) managing heat and the “other stuff” becomes important.
Here are some of the supportive pieces:
Thermal management
Motors, ESCs, batteries, cameras can get hot under load. Without proper airflow, insulation or heat-sinking, performance may degrade or parts may fail. Some frames incorporate ventilation, heat sinks, or use mounting hardware that dissipates heat.
Wiring harnesses and connectors
Good drones have clean wiring, secure connectors, low resistance joints, safe routing (away from propellers, hot motors). Poor wiring can lead to power loss, signal interference or failure.
Vibration isolation
As mentioned earlier the motors’ vibrations propagate through the frame and can degrade sensor readings, destabilize flight and produce shaky video. Support systems include rubber mounts, isolation plates, dampers, soft landing gear, etc.
Environmental protection
Some drones are used outdoors in harsh conditions—wind, rain, dust, temperature extremes. Supporting systems may include sealed electronics, conformal coated boards, water-resistant connectors, temperature sensors.
Modularity and serviceability
In commercial and enthusiast drones you’ll see modular arms, quick-swap batteries, accessible electronics, repair-friendly design. This supporting architecture means less downtime, easier upgrades, better longevity.
While these parts aren’t flashy, they matter a lot if you want a drone that’s reliable, safe and high performing.
Putting It All Together
Now that we’ve met the major components, let’s imagine the drone in action and trace what happens from power-on to landing.
You pick up your drone, insert the battery, secure the propellers, power up the remote control and the drone. The flight controller boots, boots the sensors, checks the IMU and GPS. The motors spin up briefly, sensors stabilise.
You take off. The battery supplies current to the power distribution board. Through the ESCs current flows into the brushless motors which spin the propellers. The lift generated overcomes gravity and the drone lifts.
At the same time the IMU senses changes in orientation, accelerometer senses motion, gyroscopes detect rotation, the flight controller continuously adjusts each motor’s speed (via the ESCs) to keep the drone stable in mid-air. The GPS module gives positional data and the compass gives heading.
You point the remote control stick. That command goes to the flight controller, which interprets it, then adjusts the motor speeds so the drone moves in the direction you want. If you engage “follow me” or “waypoint” mode, the flight controller consults the navigation software and sensors to fly autonomously.
Meanwhile the camera captures video via the gimbal which stabilises it. The live feed might stream to your tablet. Other sensors (obstacle avoidance) monitor front/back/side/up/down for hazards. If you fly near trees or walls the sensors alert the flight controller and it may slow or divert to avoid collision.
As you fly the battery’s voltage and current draw is monitored by the BMS or battery monitoring circuits. If the battery gets low, the system triggers “return to home” and the drone autonomously flies back. When landing you descend, motors reduce RPM gently, the landing gear absorbs the impact, sensors ensure a safe touchdown.
Everything works together: the airframe gives structure, the propulsion gives lift and thrust, the battery gives power, the flight controller gives brain, the sensors give awareness, the software gives intelligence. And the supporting systems keep it safe and smooth.
Why Modern Drones Are So Advanced (and What’s Driving Innovation)
If you reflect on older drones or simpler RC helicopters, you’ll notice how far things have advanced. What’s changed? Why are modern drones so capable? Here are some factors.
Miniaturisation of electronics
Thanks to advances in microelectronics (accelerometers and gyroscopes originally developed for smartphones) drone makers now pack powerful sensors, processors, and communication modules into tiny light boards. This enables stability, autonomous features, and intelligence in small frames.
Sensor fusion and autonomous capabilities
It’s no longer just “fly where you point.” Now drones can hover precisely indoors, avoid obstacles, follow targets, map terrain, fly pre-programmed routes, collaborate with other drones. Sensor fusion (combining multiple sensor inputs) gives these capabilities.
Improved materials and design
With better composites, carbon fiber, lightweight parts, drone frames can be stronger and lighter, improving flight time and durability. Research continues pushing materials and design optimization.
Better power systems and efficiency
Battery technology continues to improve (though not as fast as some hope). Motors and props become more efficient. Smart power architecture helps maximise flight time and performance. Even small improvements in efficiency translate to significant gains.
Connectivity and data
Modern drones are networked: live video, telemetry, cloud integration, mission planning software, occasionally AI. The data side of drones (collecting, processing, streaming, analysing) is now central.
Commercial and industrial demand
Beyond hobby use, drones are now used for surveying, agriculture, inspection, mapping, delivery, search & rescue. That drives innovation: more ruggedness, better sensors, higher payloads, longer endurance, reliability, regulatory compliance.
Because of these trends modern drones pack a lot of capability into small frames. The next generation will push further: longer endurance, better autonomy, higher payloads, maybe even swarming behavior.
What to Consider If You Disassemble or Build a Drone
If you’re curious enough to open a drone or build one yourself, here are some considerations to keep in mind.
Compatibility & matching components
The frame size, propeller diameter, motor speed, battery voltage must all be compatible. Mismatching can lead to poor performance or even failure. For example too heavy a battery will reduce flight time dramatically.
Balance between weight and capability
Every gram you add (camera, extra sensors, heavier frame) requires more power to lift. Minimising unnecessary weight is key to good performance.
Quality of components matters
Cheap motors might overheat, cheap ESCs might fail, sensors might drift. As one reddit user noted:
“You’re better off buying parts designed for custom builds … The parts you’ll find in pre-built drones were never designed to be removed from their system.”
Firmware, settings and calibration
Your flight controller must be calibrated correctly (IMU, compass, sensors). Firmware updates and tuning (PID settings) matter for stability and responsiveness. Poor tuning can make a drone fly badly or unstable.
Safety first
Ensure wiring is secure, connectors are rated, batteries are handled safely, propellers are balanced. Always test in safe environment and keep firmware fail-safes enabled (like return home, low battery landing).
Understanding mission profile
What do you want the drone to do? Photography, mapping, racing, inspection? That mission determines what components you need: high-resolution camera vs high speed motors vs long endurance battery vs heavy payload capability.
If you build or dissect a drone you’ll gain a deep appreciation for how many systems must align to make it fly reliably.
What’s Next Inside the Drone
As we look ahead, what changes might we see in drone internals? It’s exciting to imagine how the component list will evolve.
Longer endurance power systems
Battery technology improvements, alternative energy sources (hydrogen, fuel cells) or hybrid systems might extend flight times from tens of minutes to hours or more.
Better autonomy and AI
On-board AI processors will allow more autonomy: better obstacle avoidance, dynamic mission adaptation, swarm coordination where many drones collaborate intelligently.
Smarter sensing and payloads
Advanced sensors will get smaller and cheaper: hyperspectral cameras, LiDAR, radar for small drones; drones will do more specialised tasks (inspection, agriculture, mapping, delivery).
Modular and serviceable systems
Drone design might become more modular: you swap payloads, arms, batteries easily; upgrade firmware and hardware like you do with a PC.
Better connectivity & integration
5G or beyond may allow drones to stream high resolution data, integrate with cloud AI, collaborate in real time with other systems (vehicles, ground stations, satellites).
Materials & manufacturing advances
Lighter, stronger frames using advanced composites, maybe printed or advanced manufacturing, will reduce weight further and improve performance. arXiv
Because of all these trends, what’s “inside a drone” today will look different five or ten years from now. But by understanding the core components now you’ll be well prepared for the future.
Final Thoughts
When you next watch a drone hovering in the sky, zooming past a rooftop, or filming a sweeping landscape, remember: it’s not just propellers spinning. Inside is a highly engineered system: a lightweight frame, efficient motors, a powerful battery, a smart flight controller, a suite of sensors, communication links, software brains and supporting subsystems—all working together to make flight look easy and effortless.
Modern drones are marvels of integration. Each component by itself—battery, motor, controller—has been refined. The magic happens when they are combined. And that combination is what makes drones not just flying toys, but tools for photography, inspection, agriculture, mapping, research.
If you’re curious to explore further, you might open up a drone (carefully, of course), trace the wiring, identify the ESCs, examine the flight controller, see how the camera gimbal works. You’ll see that behind the smooth flight is a mesh of sensors, processors and clever design.
